100% Enigiser sound

We reverse engineered an original Orgon Systems Enigiser and made sure to keep all critical components for retaining the core sound.

MIDI/CV built in

5pin DIN-midi to 4 CV channels and 3 gates available. Totally reconfigurable.

White noise

White noise circuit added, something we felt was really missing.

EXpanded

  • Midi section: 4xCV out, 3x gate out, 3x gate booster in
  • CV expander section, buffered in/out
  • CV out
    SIN,TRI, SQR, PWM, SAW, LFO TRI, LFO SQR, ENV 1-3
  • CV in
    ENV EXT 1-2, LFO EXT 1-3, VCO SHAPE, VCO FM+attenuator, VCF INV
  • Audio input: VCF (pre volume/drive), VCA+attenuator
  • CV levels converted to Eurorack standards.*
  • Main output
  • White noise out

*applies to expander section. Original panel jacks have not been altered and conform to 0-10V

BUY NOW

IMPROVements

  • Totally redesigned front panel graphics for improved usability
  • 1.5 mm rigid stainless steel casing with top support added to avoid short circuit problems present in the original aluminum case.
  • 3.5 mm jacks instead of 6.3 mm, except for main output.
  • Powered by 9-18V center positive adapter, 300mA or more.
  • Direct OUT 6.3mm jack, on the back
  • Power switch
  • Power on LED indicator
Buy now

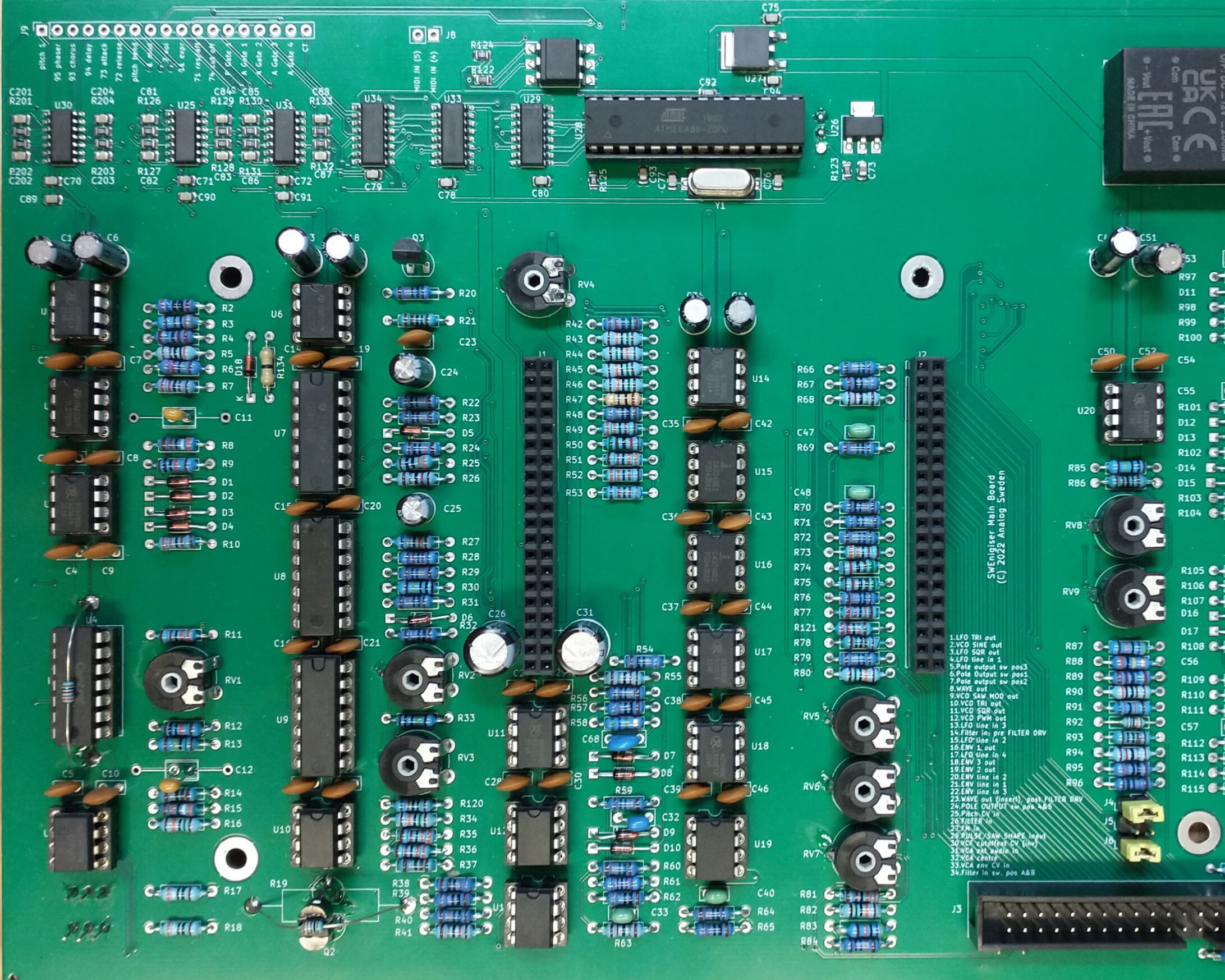

SWEnigiser PCB

Top part contains midi/cv and PSU DC/DC converter. Below is the original cloned and bottom right hosts the EXPANDER section pin header which interfaces with the expander pcb using a ribbon cable.

SPECIFICATIONs

BASIC ENIGISER SYNTH ENGINE

VCO sine, tri, square, pwm, saw variable
SLIDE
VCO MOD BUSS
VCO PWM/SAW SHAPE BUSS

VCF, 15 modes
CUTOFF
RESONANCE
TRACKING
VCF VOL/DRIVE

VCA
VCA VOL/DRIVE
VCA OFFSET
VCA ENV BUSS
VCA LFO BUSS

SUB OSC VOL

LFO TRI/SQR
LFO SPEED
LFO SHAPE

ENV 1: A, D
ENV 2: A, R
ENV 3: A, D, S, R

EXPANSION

  • Midi section: 4xCV out, 3x gate out, 3x gate booster in
  • CV expander section, buffered in/out
  • CV out
    SIN,TRI, SQR, PWM, SAW, LFO TRI, LFO SQR, ENV 1-3
  • CV in
    ENV EXT 1-2, LFO EXT 1-3, VCO SHAPE, VCO FM+attenuator, VCF INV
  • Audio input: VCF (pre volume/drive), VCA+attenuator
  • CV levels converted to Eurorack standards.*
  • Main output
  • White noise out
